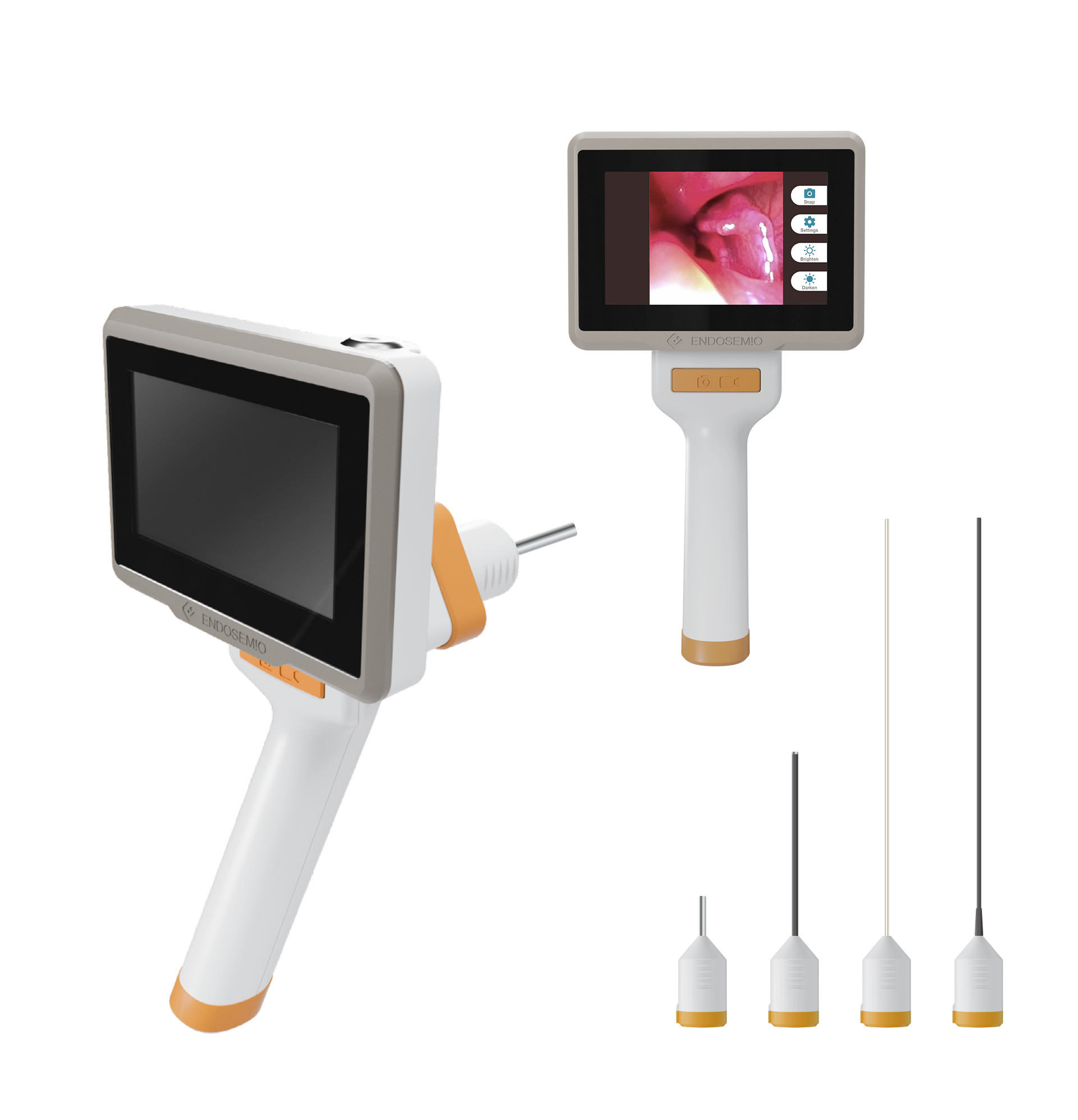

Veterinary Multi-Module Endoscope
◆ Handheld ENT endoscope with touch screen, lightweight and easy to move.
◆ It features a pioneering magnetic front-end lens design, allowing for easy replacement of the lens length for diagnosis and treatment, and is suitable for pets such as cats and dogs.
Product Features
Lightweight modular design
The magnetic lens allows for quick disassembly and replacement, meeting diverse examination needs such as those for the ears, nose, and throat, and reducing the time and inconvenience of equipment switching.
Ergonomic
Supports both handheld and tabletop modes, conforming to clinical operating habits, easily handling multi-angle and long-term examinations, and reducing the workload of physicians.
Recording
Built-in real-time image capture function can record photos and videos simultaneously, which not only helps doctors make accurate judgments, but also improves communication efficiency and trust with pet owners.
Multi-module quick assembly and disassembly
Handheld wireless device allows for flexible examination of different body parts and postures without the need to move the tower-style medical cart.
Real-time medical imaging facilitates communication with pet owners.
Provides clear images
It helps improve the accuracy of clinical diagnosis.
Real-time video support
It helps physicians make quick decisions and optimize treatment outcomes.
Technical Specifications
host
| Model Name | Veterinary Multi-Module Endoscope |
|---|---|
| Model | VORL-001 |
| Dimension | W106xD146XH188mm |
| Weight | 267g |
| Display Size | 3.5 inches |
| Display Resolution | 1920x1080 pixels |
| Display Type | Touch Screen, TFT-LCD |
| Working Time | 4 hours (average) |
| Memory Capacity | 32GB |
| Function | Snspshot, video recording, LED brighten adjustment |
| Package includes | 1. Main Unit 2. Endoscope Module 3. Charger 4. Ear Specula |
| Charging Method | Power Supply: • Internal Li-ion Battery: DC 3.7V, 3500mAh, 12.95Wh • AC Adapter: AC 100–240V, 50/60Hz, 0.3–0.12A Ports: • Micro HDMI Output • Type-C |
lens
| Model Name | Outer Diameter | Working Length | Resolution |
|---|---|---|---|
| 4mm rigid earpiece lens | 4.0mm (12.0Fr) | 20 mm | 1920×1080 pixels |
| 4mm Flexible Ear Lens | 4.0mm (12.0Fr) | 100 mm | 1920×1080 pixels |
| 2.2mm flexible nose lens | 2.2mm (6.6Fr) | 200 mm | 700×700 pixels |
| 1.6mm rigid nose lens | 1.6mm (4.8Fr) | 200 mm | 700×700 pixels |
Request a catalog/ Consult about a trial
Contact us for a complete catalog, clinical examples, and procurement options; we also provide support for clinical testing and educational training.
Subscribe to our monthly newsletter for more information.
If you are interested in clinical research, strategic cooperation, or investment in related products, please feel free to contact us.
