2.2mm Portable
Veterinary Endoscope
◆ A handheld endoscope designed specifically for examining the tricky and confined areas of small animals.
◆ The slim 2.2mm scope body and 60cm working length help to quickly access confined areas and provide stable and clear clinical images.
Clinical application subjects and scenarios
- In-depth observation and recording: ventilator intubation and clinical examination (cats/dogs), nasal endoscopy (cats/dogs)
- Diagnosis in small animals: dogs, cats, etc., allowing for rapid identification of lesions in a non-invasive setting.
- Visual communication: Photos/videos help discuss treatment plans with pet owners and improve compliance.
Product Features
Ultra-thin mirror body

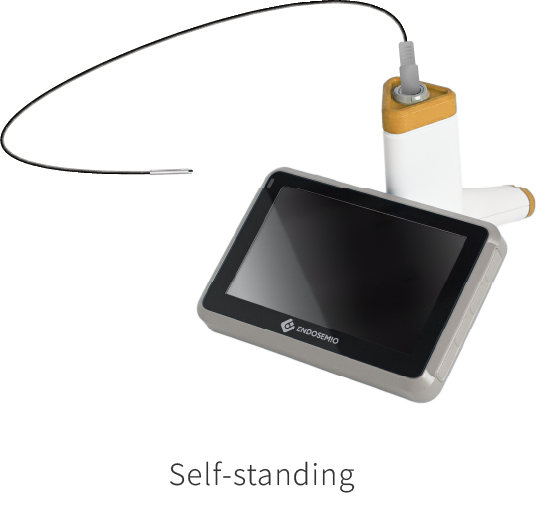

2.2mm ultra-thin lens body, lightweight handheld and tabletop design
Long-term operation
Battery life up to 8 hours
Clear display
5-inch high-definition screen, displaying images in real time.
Recording
Supports taking photos and videos, adjusting LED brightness, and has 32GB of built-in memory.
Technical Specifications
Host
| Model Name | 2.2mm Portable Veterinary Endoscope |
|---|---|
| Model | VNEOMN-01 |
| Dimension | W145xD141xH213mm |
| Weight | 360g |
| Display Size | 5 inches |
| Display Resolution | 720x480 pixels |
| Display Type | TFT-LCD |
| Working Time | 8 hours (average) |
| Memory Capacity | 32GB |
| Function | Snspshot, video recording, LED brighten adjustment |
| Package includes | 1. One 2.2mm veterinary endoscope (without working channel) 2. 5-inch handheld monitor |
| Charging Method | Power Supply: • Internal Li-ion Battery: DC 3.7V, 3500mAh 12.95Wh • AC Adapter: AC 100-240V, 50/60Hz, 0.3-0.12A Ports: • Type-C |
lens
Outer Diameter
2.2 mm (6.6Fr)
Working Length
600 mm
Resolution
400×400 pixels
| Model Name | Image tube NEO400N-01 |
|---|---|
| Working Length | 600mm |
| Outer Diameter | 2.2mm/No working channel |
| Resolution | 400x400 pixels |
| Light | LED |
| Features | 1. Disposable camera tube designed 2. No necessary to replace the entire product 3. Extremely fine camera sensor |
